Resource Management & POD template
POD Template :

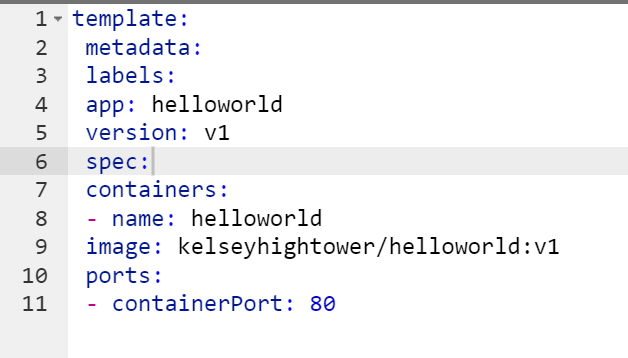

When the number of Pods in the current state is less than the number of Pods in the desired state, the ReplicaSet controller will create new Pods using a template contained in the ReplicaSet specification. The Pods are created in exactly the same manner as when you created a Pod from a YAML file but instead of using a file, the Kubernetes ReplicaSet controller creates and submits a Pod manifest based on the Pod template directly to the API server. Here is an example of a Pod template in a ReplicaSet:
Resource Management
Kubernetes allows users to specify two different resource metrics. Resource requests specify the minimum amount of a resource required to run the application. Resource limits specify the maximum amount of a resource that an application can consume.
A common source of errors is specifying milliunits via a lowercase m versus megaunits via an uppercase M. Concretely, “400m” is 0.4 MB, not 400Mb, a significant difference!

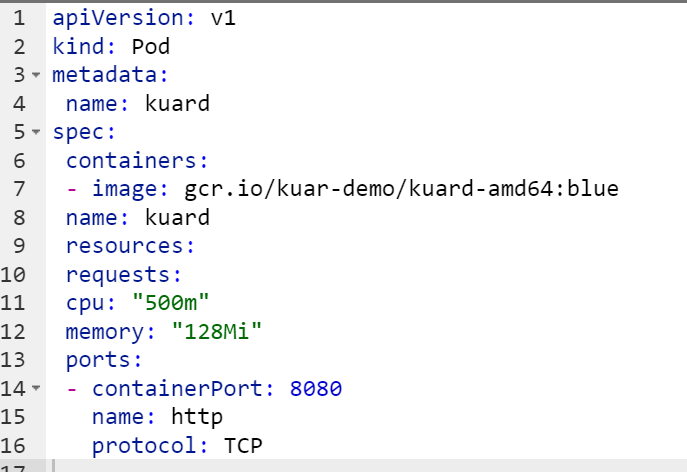

When a Pod requests the resources required to run its containers, Kubernetes guarantees that these resources are available to the Pod. The most commonly requested resources are CPU and memory, but Kubernetes supports other resource types as well, such as GPUs. For example, to request that the kuard container land on a machine with half a CPU free and get 128 MB of memory allocated to it, we define the Pod as shown in below :
https://codebeautify.org/yaml-validator/y22d9656f
Resources are requested per container, not per Pod. The total resources requested by the Pod is the sum of all resources requested by all containers in the Pod because the different containers often have very different CPU requirements. For example, if a Pod contains a web server and data synchronizer, the web server is user-facing and likely needs a great deal of CPU, while the data synchronizer can make do with very little.
Requests are used when scheduling Pods to nodes. The Kubernetes scheduler will ensure that the sum of all requests of all Pods on a node does not exceed the capacity of the node. Therefore, a Pod is guaranteed to have at least the requested resources when running on the node. Importantly, “request” specifies a minimum. It does not specify a maximum cap on the resources a Pod may use.
To explore what this means, let’s look at an example. Imagine a container whose code attempts to use all available CPU cores. Suppose that we create a Pod with this container that requests 0.5 CPU. Kubernetes schedules this Pod onto a machine with a total of 2 CPU cores.As long as it is the only Pod on the machine, it will consume all 2.0 of the available cores, despite only requesting 0.5 CPU. If a second Pod with the same container and the same request of 0.5 CPU lands on the machine, then each Pod will receive 1.0 cores. If a third, identical Pod is scheduled, each Pod will receive 0.66 cores. Finally, if a fourth identical Pod is scheduled, each Pod will receive the 0.5 core it requested, and the node will be at capacity. CPU requests are implemented using the cpu-shares functionality in the Linux kernel.
Memory requests are handled similarly to CPU, but there is an important difference. If a container is over its memory request, the OS can’t just remove memory from the process, because it’s been allocated. Consequently, when the system runs out of memory, the kubelet terminates containers whose memory usage is greater than their requested memory. These containers are automatically restarted, but with less available memory on the machine for the container to consume.
Reference: O’reilly/Brendan Burns
